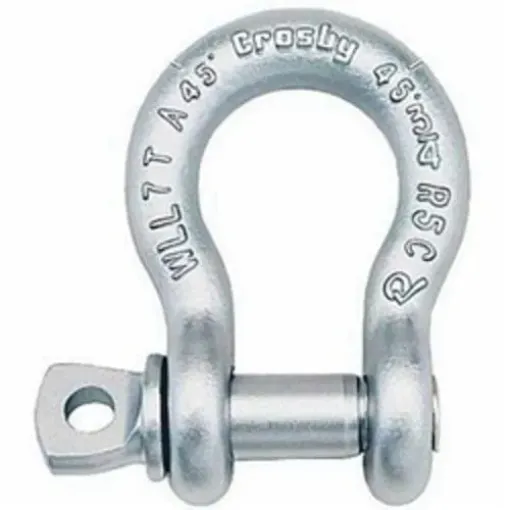

Crosby® 1017582 Anchor Shackle, 12.5 ton Load, 1 in, 1.13 in Dia Screw Pin, Hot Dipped Galvanized

Name: Crosby® 1017582 Anchor Shackle, 12.5 ton Load, 1 in, 1.13 in Dia Screw Pin, Hot Dipped Galvanized
Brand: Crosby Group
SKU: CRO 10-17582
Availability: OutOfStock

Manufacturer: Crosby Group

Crosby® Anchor Shackle, Series: G-209A, 12.5 ton Load, 1 in Size, 1.13 in Pin Diameter, Screw Pin, 3-3/4 in Inner Length, 2.69 in Inner Width, 1.69 in Opening, 2.38 in Eye Outer, 6.56 in Overall Length, 5.07 in Overall Width, Forged Alloy Steel Body, Alloy Steel Pin, Hot Dipped Galvanized

SKU: CRO 10-17582

Manufacturer part number: 1017582

Delivery
21 In Stock

Availability:

Total Stock Available : 21

Price: Call for pricing

Qty:

i h h

Overview
Specifications

Forged alloy steel - quenched and tempered, with alloy pins
Working load limit permanently shown on every shackle
Shackles can be furnished proof tested with certificates to designated standards, such as ABS, DNV, Lloyds or other certification
Approved for use at -40 to 204 deg C
Meets or exceeds all requirements of ASME B30.26 including identification, ductility, design factor, proof load and temperature requirements
Importantly, these shackles meet other critical performance requirements including fatigue life, impact properties and material traceability, not addressed by ASME B30.26
Capacities 2 - 21 metric tons
Meets performance requirements of grade 8 shackles
Load rated
+/-0.25 in L tolerance
+/-0.06 in W tolerance

Products specifications

Product type	Consumable
Size	1
Body Material	Forged Alloy Steel
Eye Outer Size	2.38
Inner Length	3-3/4
Inner Width	2.69
Load Capacity	12.5
Opening Size	1.69
Overall Length	6.56
Overall Width	5.07
Pin Diameter	1.13
Pin Material	Alloy Steel
Pin Type	Screw
Series	G-209A
Finish	Hot Dipped Galvanized
