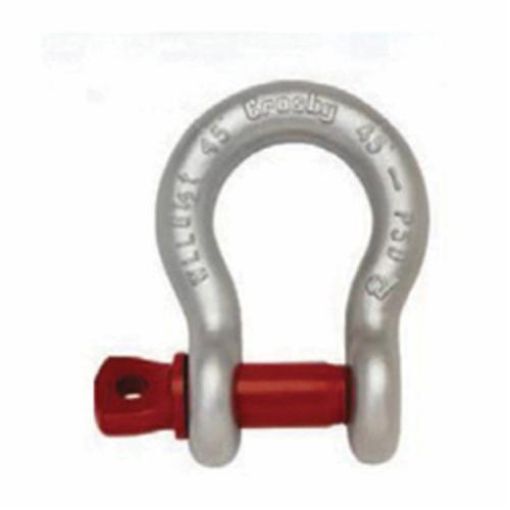

Picture of Crosby® 1018419 Anchor Shackle, 1 ton Load, 3/8 in, 0.44 in Dia Screw Pin, Hot Dipped Galvanized
Picture of Crosby® 1018419 Anchor Shackle, 1 ton Load, 3/8 in, 0.44 in Dia Screw Pin, Hot Dipped Galvanized

Crosby® 1018419 Anchor Shackle, 1 ton Load, 3/8 in, 0.44 in Dia Screw Pin, Hot Dipped Galvanized

Manufacturer: Crosby Group
Crosby® Anchor Shackle, Series: Maxtough® G-209, 1 ton Load, 3/8 in Size, 0.44 in Pin Diameter, Screw Pin, 1.44 in Inner Length, 1.03 in Inner Width, 0.66 in Opening, 0.91 in Eye Outer, 2.49 in Overall Length, 2.02 in Overall Width, Carbon Steel Body, Alloy Steel Pin, Hot Dipped Galvanized
SKU: CRO 10-18419
Manufacturer part number: 1018419
Availability:
Total Stock Available : 84
Price: Call for pricing
i h h



Have Questions About This Product?



  • Forged quenched and tempered with alloy pins
  • Working load limit and grade "6 in permanently shown on every shackle
  • Shackles can be furnished proof tested with certificates to designated standards, such as ABS, DNV, Lloyds or other certification
  • Approved for use at -40 to 204 deg C
  • Capacities 1/3 thru 55 metric tons, grade 6
  • The tests are conducted by Crosby® and 3.1 test certification is available upon request
  • +/-0.13 in L tolerance
  • +/-0.06 in W tolerance
  • Fatigue rated
  • Load rated
  • 3.25 - 25 ton G209 anchor shackles are type approved to DNV certification Notes 2.7-1- Offshore containers
  • These shackles are statistical proof and impact tested to 42 joules min average at -20 deg C
Products specifications
Product type Consumable
Size 3/8
Body Material Carbon Steel
Eye Outer Size 0.91
Inner Length 1.44
Inner Width 1.03
Load Capacity 1
Opening Size 0.66
Overall Length 2.49
Overall Width 2.02
Pin Diameter 0.44
Pin Material Alloy Steel
Pin Type Screw
Series Maxtough® G-209
Finish Hot Dipped Galvanized
