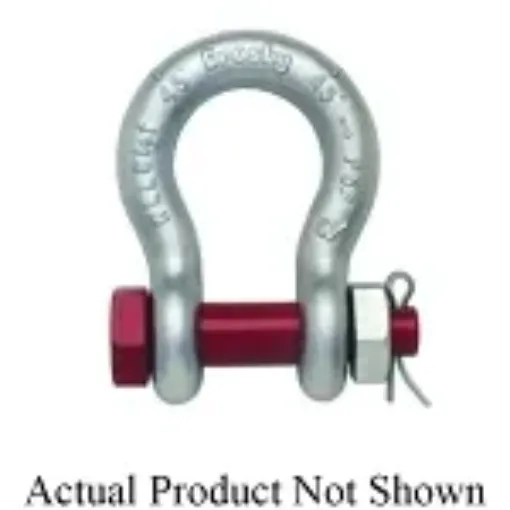

Crosby® 1018525 Anchor Shackle, 6.5 ton Load, 7/8 in, 1 in Dia Screw Pin, Self-Colored

Manufacturer: Crosby Group
Crosby® Anchor Shackle, Series: Maxtough® S-209, 6.5 ton Load, 7/8 in Size, 1 in Pin Diameter, Screw Pin, 3.31 in Inner Length, 2.28 in Inner Width, 1.44 in Opening, 2.09 in Eye Outer, 5.83 in Overall Length, 4-1/2 in Overall Width, Carbon Steel Body, Alloy Steel Pin, Self-Colored
SKU: CRO 10-18525
Manufacturer part number: 1018525
Availability:
Total Stock Available : 0
Price: Call for pricing
i h h



Have Questions About This Product?



  • Forged quenched and tempered with alloy pins
  • Working load limit and grade "6 in permanently shown on every shackle
  • Shackles can be furnished proof tested with certificates to designated standards, such as ABS, DNV, Lloyds or other certification
  • Approved for use at -40 to 204 deg C
  • Capacities 1/3 thru 55 metric tons, grade 6
  • The tests are conducted by Crosby® and 3.1 test certification is available upon request
  • +/-0.25 in L tolerance
  • +/-0.06 in W tolerance
  • Fatigue rated
  • Load rated
Products specifications
Owner AMECO
Size 7/8
Product type Consumable
Weight 3.62
Body Material Carbon Steel
Eye Outer Size 2.09
Inner Length 3.31
Inner Width 2.28
Load Capacity 6.5
Opening Size 1.44
Overall Length 5.83
Overall Width 4-1/2
Pin Diameter 1
Pin Material Alloy Steel
Pin Type Screw
Series Maxtough® S-209
Finish Self-Colored
