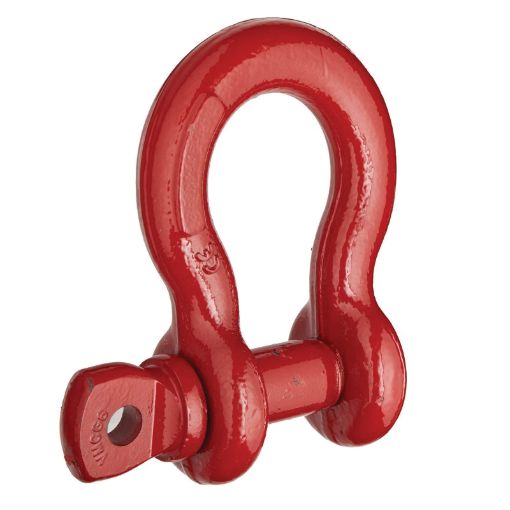

Crosby® 1018561 Anchor Shackle, 9.5 ton Load, 1-1/8 in, 1-1/4 in Dia Screw Pin, Self-Colored

Manufacturer: Crosby Group
Crosby® Anchor Shackle, Series: S-209, 9.5 ton Load, 1-1/8 in Size, 1-1/4 in Pin Diameter, Screw Pin, 4-1/4 in Inner Length, 2.91 in Inner Width, 1.81 in Opening, 2.69 in Eye Outer, 7.47 in Overall Length, 5.71 in Overall Width, Carbon Steel Body, Carbon Steel Pin, Self-Colored
SKU: CRO 10-18561
Manufacturer part number: 1018561
Availability:
Total Stock Available : 0
Price: Call for pricing
i h h



Have Questions About This Product?



  • Working load limit and grade 6 permanently shown on every shackle
  • Shackles can be furnished proof tested with certificates to designated standards, such as ABS, DNV, Lloyds or other certification
  • Approved for use at -40 to 400 deg F
  • 3.25 ton through 25 ton G209 anchor shackles are type approved to DNV certification notes 2.7-1- offshore containers
  • The shackles are statistical proof and impact tested to 42 J min average at -4 deg F
  • The tests are conducted by Crosby® and 3.1 test certified
  • All other 209 shackles can meet charpy requirements of 42 J average at -4 deg F upon special request
  • Look for the Red Pin® the mark of genuine Crosby® quality
Products specifications
Product type Consumable
Size 1-1/8
Body Material Carbon Steel
Eye Outer Size 2.69
Inner Length 4-1/4
Inner Width 2.91
Load Capacity 9.5
Opening Size 1.81
Overall Length 7.47
Overall Width 5.71
Pin Diameter 1-1/4
Pin Material Carbon Steel
Pin Type Screw
Series S-209
Finish Self-Colored
