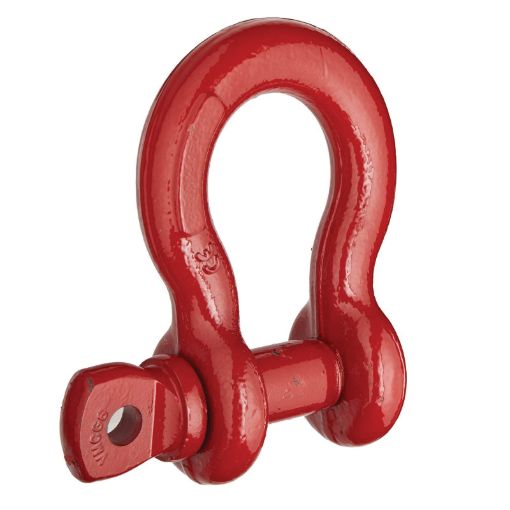

Picture of Crosby® 1018641 Anchor Shackle, 25 ton Load, 1-3/4 in, 2 in Dia Screw Pin, Self-Colored
Picture of Crosby® 1018641 Anchor Shackle, 25 ton Load, 1-3/4 in, 2 in Dia Screw Pin, Self-Colored

Crosby® 1018641 Anchor Shackle, 25 ton Load, 1-3/4 in, 2 in Dia Screw Pin, Self-Colored

Manufacturer: Crosby Group
Crosby® Anchor Shackle, Series: S-209, 25 ton Load, 1-3/4 in Size, 2 in Pin Diameter, Screw Pin, 7 in Inner Length, 5 in Inner Width, 2-7/8 in Opening, 4.19 in Eye Outer, 12.34 in Overall Length, 9.06 in Overall Width, Carbon Steel Body, Carbon Steel Pin, Self-Colored
SKU: CRO 10-18641
Manufacturer part number: 1018641
Availability:
Total Stock Available : 0
Price: Call for pricing
i h h



Have Questions About This Product?



  • Working load limit and grade 6 permanently shown on every shackle
  • Shackles can be furnished proof tested with certificates to designated standards, such as ABS, DNV, Lloyds or other certification
  • Approved for use at -40 to 400 deg F
  • 3.25 ton through 25 ton G209 anchor shackles are type approved to DNV certification notes 2.7-1- offshore containers
  • The shackles are statistical proof and impact tested to 42 J min average at -4 deg F
  • The tests are conducted by Crosby® and 3.1 test certified
  • All other 209 shackles can meet charpy requirements of 42 J average at -4 deg F upon special request
  • Look for the Red Pin® the mark of genuine Crosby® quality
Products specifications
Product type Consumable
Size 1-3/4
Body Material Carbon Steel
Eye Outer Size 4.19
Inner Length 7
Inner Width 5
Load Capacity 25
Opening Size 2-7/8
Overall Length 12.34
Overall Width 9.06
Pin Diameter 2
Pin Material Carbon Steel
Pin Type Screw
Series S-209
Finish Self-Colored
