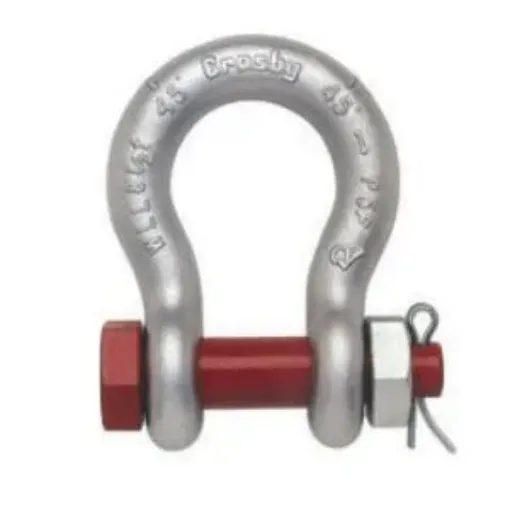

Crosby® 1019515 Anchor Shackle, 4.75 ton Load, 3/4 in, 0.89 in Dia Bolt Pin, Hot Dipped Galvanized

Manufacturer: Crosby Group
Crosby® Anchor Shackle, Series: G-2130, 4.75 ton Load, 3/4 in Size, 0.89 in Pin Diameter, Bolt Pin, 2.81 in Inner Length, 2 in Inner Width, 1-1/4 in Opening, 1.81 in Eye Outer, 4.97 in Overall Length, 4.15 in Overall Width, Carbon Steel Body, Alloy Pin, Hot Dipped Galvanized
SKU: CRO 10-19515
Manufacturer part number: 1019515
Availability:
Total Stock Available : 0
Price: Call for pricing
i h h



Have Questions About This Product?



  • Working load limit and grade 6 permanently shown on every shackle
  • Approved for use at -40 to 400 deg F
  • 3.1 Certification as standard available for charpy and statistical proof test from 3.25 ton up to 25 tons to DNV2.7-1 and EN13889
  • Crosby® 3.25 ton through 25 ton G2130OC anchor shackles are type approved to DNV certification notes 2.7-1 offshore containers
  • The Crosby® shackles are statistical proof and impact tested to 42 J min average at -4 deg F
  • All other 2130 shackles can meet charpy requirements of 42 J average at -4 deg F when requested at time of order
  • Look for the Red Pin® the mark of genuine Crosby® quality
