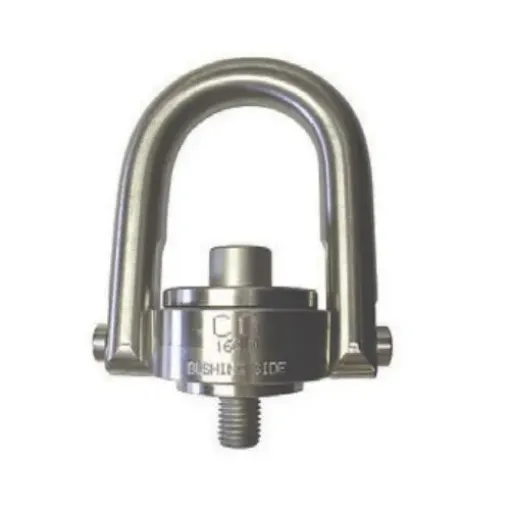

Crosby® 1065036 SS-125 Swivel Hoist Ring, 2000 lb Load, 180 deg Pivot, 360 deg Swivel, 0.69 in Bail, 5/8-11 UNC Thread

Manufacturer: Crosby Group
Crosby® Swivel Hoist Ring, Series: SS-125, 2000 lb, 180 deg Pivot Angle, 360 deg Swivel, 0.69 in Bail Dia, 5/8-11 UNC, 30 ft-lb Installation Torque, 3.52 in W
SKU: CRO 1065036
Manufacturer part number: 1065036
Availability:
Total Stock Available : 0
Price: Call for pricing
i h h



Have Questions About This Product?



  • All components are 316 stainless steel, except bolt retainers, which are made from 15-7 PH (UNS 15700) magnetic stainless steel
  • Rated at 100% at 90 deg angle
  • Each product has a product identification code (PIC) for material traceability, along with the working load limit and the name Crosby® or "CG" stamped into it
  • Individually proof tested to 2X the working load limit with certification
  • Fatigue rated to 20000 cycles at 1-1/2X the working load limit
  • Washer is color coded for easy identification, red for UNC thread
  • Bolt specification is 316 stainless steel socket head cap screw
