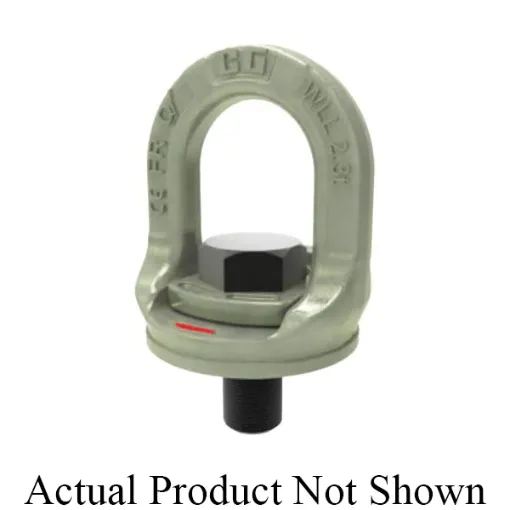

Crosby® SLIDE-LOC™ 1068452 SL-150 Lift Point, 3.2 ton Load, 90 deg Pivot, 360 deg Swivel, 0.76 in Dia Bail, 1-8 UNC Thread

Manufacturer: Crosby Group
Crosby® SLIDE-LOC™ Lift Point, Series: SL-150, 3.2 ton Load, 90 deg Pivot Angle, 360 deg Swivel, 0.76 in Diameter Bail, 1-8 UNC Thread, Threaded Mounting, 3.59 in W Dimensions
SKU: CRO 1068452
Manufacturer part number: 1068452
Availability:
Total Stock Available : 0
Price: Call for pricing
i h h



Have Questions About This Product?



  • Bail is forged alloy steel, quenched and tempered
  • Rated at 100% at 90 deg angle
  • Fatigue rated to 20000 cycles at 1-1/2 times the working load limit
  • Bolt specification for metric bolt is grade 10.9 alloy cap screw to SO 898-1
  • Unique locking mechanism makes the lifting point well suited for quick attachment to load surface, no need for tools
  • Features QUIC-CHECK® markings on bail to assist in knowing when device is ready for lifting
