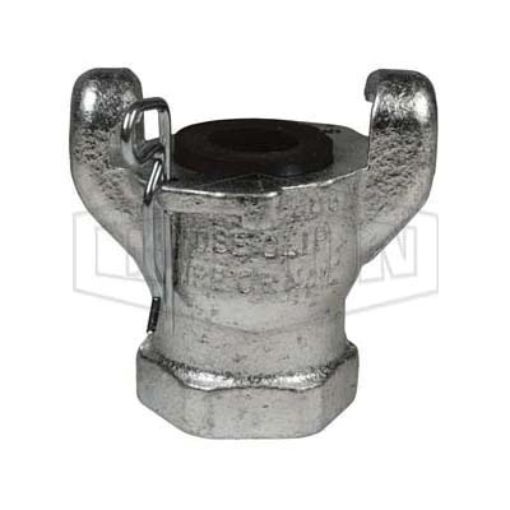

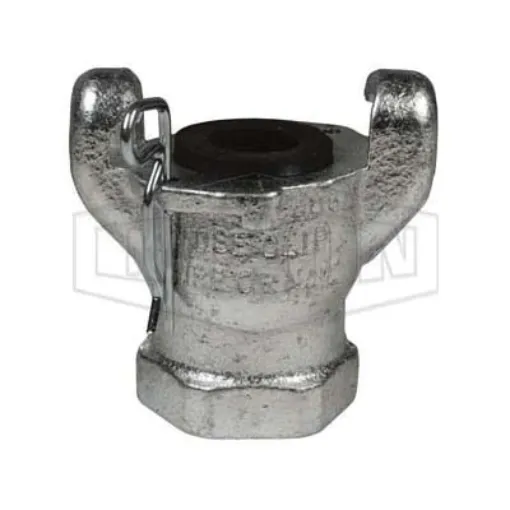

Dixon® AM8 Air King™ Universal Hose End Coupling, 3/4 in, FNPT, Iron, Domestic

Name: Dixon® AM8 Air King™ Universal Hose End Coupling, 3/4 in, FNPT, Iron, Domestic
Brand: Dixon Valve & Coupling
SKU: DIX AM8
Availability: OutOfStock

Manufacturer: Dixon Valve & Coupling

Dixon® Hose End Coupling, Universal, Series: Air King™, 3/4 in Nominal, FNPT, 2-1/2 in Length, 3/8 in Hex, 150 psi, Iron, 2-1/2 in W, Domestic

SKU: DIX AM8

Manufacturer part number: AM8

Pickup
Cincinnati 145 In Stock
Delivery
145 In Stock

Availability:

Total Stock Available : 145

Price: Call for pricing

Qty:

i h h

Overview
Specifications

Use of supplied safety clip guarantees the fittings are properly connected because the safety pin will not go through the holes in mating fittings until couplings are locked in place
Air king meets pressure requirements as specified in A-A-59553 commercial item description superseding mil Spec.WWC-633D
Supplied with rubber washer, part no AWR4
Rubber seal
Never use any air king coupling for steam service!
The use of an air king safety clip or wire type retainer is necessary to ensure air king universal couplings will not become accidentally disconnected
To provide protection against coupling breakage and related hazards, Dixon recommends the use of a whip hose
150 psi at ambient temperature 70 deg F
Warning: this product contains a chemical known to the state of California to cause birth defects or other reproductive harm
Do not use in connection with drinking water
Wash hands after handling

Products specifications

Product type	Consumable
Length	2-1/2
Dimensions	2-1/2 in W
Domestic/Import	Domestic
End Style	FNPT
Hex Size	3/8
Nominal Size	3/4
Pressure Rating	150
Series	Air King™
Type	Universal
Material	Iron
