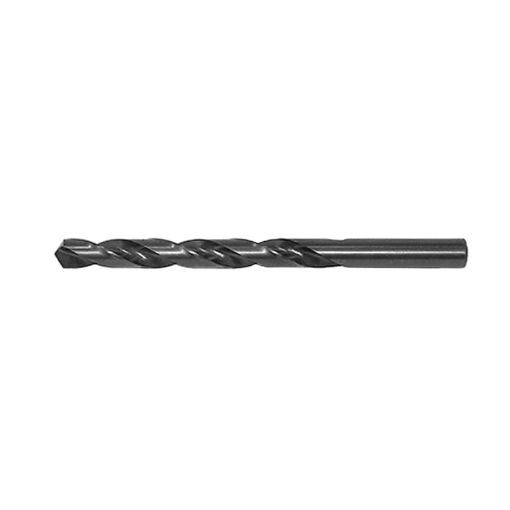

Drillco 200A120 Jobber Length Drill Bit, 5/16 in Drill - Fraction, 0.3125 in Drill - Decimal Inch, 118 deg Point, HSS, Black Oxide

Manufacturer: Walter Surface Technologies
Drillco Jobber Length Drill Bit, Series: 200, Imperial, 5/16 in Drill - Fraction, 0.3125 in Drill - Decimal Inch, 4-1/2 in Overall Length, 3-3/16 in Cutting Depth, 2 Flutes, Spiral Flute, 3-3/16 in Flute Length, Straight Shank, 118 deg Point, Conventional Point, Right Hand Cutting Direction, HSS Cutting Edge, No Through Coolant, HSS, Black Oxide, Applicable Materials: Cast Iron, Steel and Steel Forging
SKU: DRI 200A120
Manufacturer part number: 200A120
Availability:
Total Stock Available : 262
Price: Call for pricing
i h h



Have Questions About This Product?



200/240/280 series drills are designed for general purpose drilling under a wide range of conditions. For low to medium tensile strength materials. The surface treatment prevents chip welding, improves chip flow and increases abrasion resistance.
  • This drill is designed for general purpose drilling under a wide range of drilling conditions
  • The surface treatment prevents chip welding, improves chip flow and increases abrasion resistance
  • Black oxide surface treatment for improved life
  • Jobber length for most use cases
Products specifications
Owner AMECO
Product type Consumable
Weight 0.4
Cutting Depth 3-3/16
Cutting Direction Right Hand
Cutting Edge Material HSS
Drill Diameter Measurement System Imperial
Drill Size - Decimal Inch 0.3125
Drill Size - Fraction 5/16
Flute Length 3-3/16
Flute Type Spiral
Number of Flutes 2
Overall Length 4-1/2
Point Angle 118
Series 200
Shank Type Straight
Through Coolant (Yes/No) No
Point Type Conventional
Material HSS
Finish Black Oxide
Applicable Materials Cast Iron, Steel and Steel Forging
