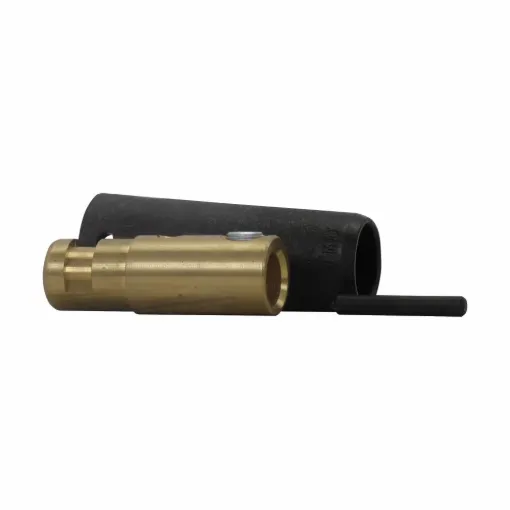

EATON Crouse-Hinds Cam-Lok™ E1012-65 F Series 1-Pole Male Plug, 120 VAC, 315 A, 3/0 to 4/0 AWG Wire, Setscrew Connection

Name: EATON Crouse-Hinds Cam-Lok™ E1012-65 F Series 1-Pole Male Plug, 120 VAC, 315 A, 3/0 to 4/0 AWG Wire, Setscrew Connection
Brand: Eaton
SKU: CAM E1012-65
Availability: OutOfStock

Manufacturer: Eaton

EATON Crouse-Hinds Cam-Lok™ Male Plug, 1-Pole, Series: F Series E1012, 120 VAC, 315 A, 3/0 to 4/0 AWG Wire, Setscrew Connection, Brass Contact, TPE Housing Material, Specifications: 1-Contact, 550 A Intermittent, -40 to 105 deg C, Red, 1.19 in Dia x 3.86 in L Dimensions

SKU: CAM E1012-65

Manufacturer part number: E1012-65

Pickup

Carson City Warehouse- 67 Industrial Parkway Mound House NV 89706 0 In Stock
Delivery

0 Out Of Stock

Availability:

Total Stock Available : 0

Price: Call for pricing

Qty:

i h h

Overview
Specifications

Cam-Lok™ "F" series provides the means to quickly connect and disconnect power systems safely. Cam-Lok™ is the industry standard for motors, generators, indoor and outdoor lighting distribution panels and numerous other power applications.

Double cam principle provides a positive, vibration proof connection
Self-compensating for wear
No moving contact surfaces, eliminating arcing or burning of contacts
Superior electromechanical connections
Locked contacts will withstand a pulling force of 1000 lb
1/3 of a turn assures a high pressure contact approaching 600 lb/sq-in providing minimum resistance
Contacts carefully machined from a high conductivity brass to a smooth sliding fit and easy locking action
Thermoplastic insulators molded from colorfast material, color coded for easy identification

Products specifications

Color	Red
Amperage Rating	315 A
Connection Type	Setscrew
Contact Material	Brass
Dimensions	1.19 in Dia x 3.86 in L
Housing Material	TPE
Series	F Series E1012
Specifications	1-Contact, 550 A Intermittent
Temperature Rating	-40 to 105 deg C
Type	1-Pole
Voltage Rating	120 VAC
Wire Size	3/0 to 4/0 AWG
