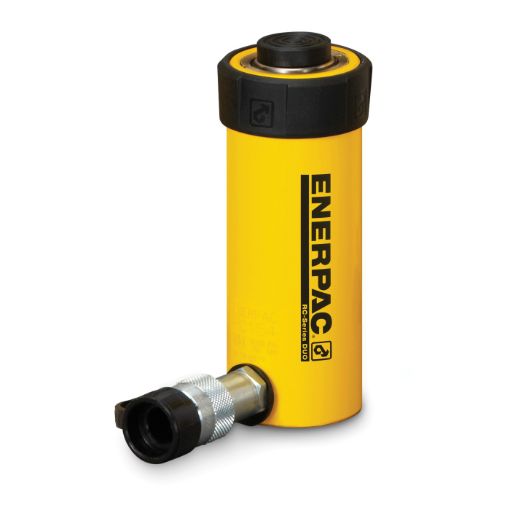

Enerpac® RC-156 DUO General Purpose Single Acting Hydraulic Cylinder, 15 ton Capacity, 2 in Dia Bore, 6 in L Stroke, 10.69 in H Retract, 1.63 in Dia Rod, 700 bar

Name: Enerpac® RC-156 DUO General Purpose Single Acting Hydraulic Cylinder, 15 ton Capacity, 2 in Dia Bore, 6 in L Stroke, 10.69 in H Retract, 1.63 in Dia Rod, 700 bar
Brand: Enerpac
SKU: ENE RC-156
Availability: OutOfStock

Manufacturer: Enerpac

Enerpac® Hydraulic Cylinder, DUO General Purpose Single Acting, Series: RC, 15 ton, 2 in Dia Bore, 6 in Stroke, 10.69 in H Retract, Base Mount, 1.63 in Rod Dia, 700 bar, Alloy Steel Housing, Baked Enamel, 2-3/4 in OD

SKU: ENE RC-156

Manufacturer part number: RC-156

Pickup

Greenville 0 In Stock
Delivery

3 In Stock

Availability:

Total Stock Available : 3

Price: Call for pricing

Qty:

i h h

Overview
Specifications

Enerpac® RC series single acting hydraulic cylinders set the industry standard for general purpose cylinders
Unique GR2 bearing design, reduces wear, extending life
Collar threads, plunger threads and base mounting holes enable easy fixturing
Designed for use in all positions
High strength alloy steel for durability
Redesigned cylinder thread protector for ease of use
Heavy duty, pretensioned spring improves retraction speed
Baked enamel finish for increased corrosion resistance
Plunger wiper reduces contamination, extending cylinder life

Products specifications

Product type	Consumable
Bore Size	2 in Dia
Capacity	15
Dimensions	2-3/4 in OD
Housing Material	Alloy Steel
Mounting Type	Base
Pressure Rating	700
Retract	10.69 in H
Rod Diameter	1.63
Series	RC
Stroke Length	6
Type	DUO General Purpose Single Acting
Finish	Baked Enamel
