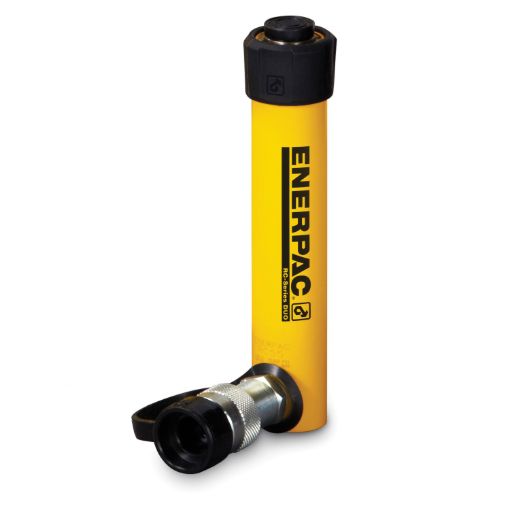

Enerpac® RC-55 DUO General Purpose Single Acting Hydraulic Cylinder, 5 ton Capacity, 1.13 in Dia Bore, 5 in L Stroke, 8-1/2 in H Retract, 1 in Dia Rod, 700 bar

Manufacturer: Enerpac
Enerpac® Hydraulic Cylinder, DUO General Purpose Single Acting, Series: RC, 5 ton, 1.13 in Dia Bore, 5 in Stroke, 8-1/2 in H Retract, Base Mount, 1 in Rod Dia, 700 bar, Alloy Steel Housing, Baked Enamel, 1-1/2 in OD
SKU: ENE RC-55
Manufacturer part number: RC-55
Availability:
Total Stock Available : 1
Price: Call for pricing
i h h



Have Questions About This Product?



  • Enerpac® RC series single acting hydraulic cylinders set the industry standard for general purpose cylinders
  • Unique GR2 bearing design, reduces wear, extending life
  • Collar threads, plunger threads and base mounting holes enable easy fixturing
  • Designed for use in all positions
  • High strength alloy steel for durability
  • Redesigned cylinder thread protector for ease of use
  • Heavy duty, pretensioned spring improves retraction speed
  • Baked enamel finish for increased corrosion resistance
  • Plunger wiper reduces contamination, extending cylinder life
Products specifications
Product type Consumable
Bore Size 1.13 in Dia
Capacity 5
Dimensions 1-1/2 in OD
Housing Material Alloy Steel
Mounting Type Base
Pressure Rating 700
Retract 8-1/2 in H
Rod Diameter 1
Series RC
Stroke Length 5
Type DUO General Purpose Single Acting
Finish Baked Enamel
