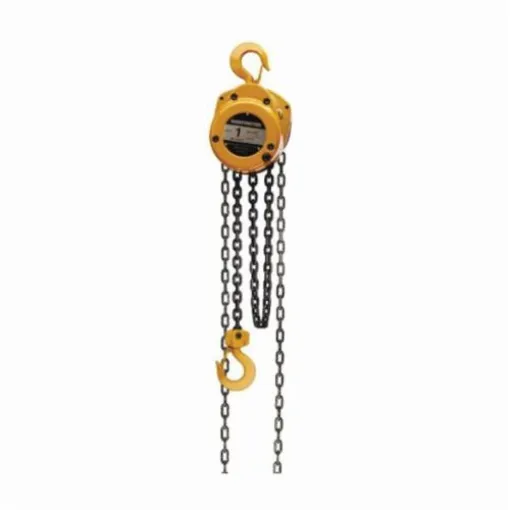

HARRINGTON CF030-20 CF Series Manual Chain Hoist, 6000 lb Load, 20 ft H Lifting, 23-1/4 in Min Between Hooks, 1-11/16 in Hook Opening, 92 lb Rated

Manufacturer: Harrington Hoists
HARRINGTON Manual Chain Hoist, Series: CF Series, 6000 lb, 20 ft Lifting Height, 23-1/4 in Minimum Between Hooks, 1-11/16 in Hook Opening, 92 lb Pull to Lift, Weston Brake, 23-1/4 in L x 9-13/32 in W x 6 in D
SKU: HAR CF030-20
Manufacturer part number: CF030-20
Availability:
Total Stock Available : 0
Price: Call for pricing
i h h



Have Questions About This Product?



Harrington CF hand chain hoists give you a practical alternative thanks to an economical design using fewer parts for trouble-free service. Outstanding durability is due to a die-cast aluminum body and high-strength, heat treated main pinion shaft and load gear. Pre-lubricated ball bearings, precision machined gears and Weston-style load brake make lifting smooth and easy while allowing long service and low maintenance.
  • Experience exceptional strength with a thick die-cast aluminum body
  • Handle tough demands with high-strength, heat treated main pinion shaft and load gear
  • Get positive braking action with Weston-style load brake incorporating two moisture resistant brake pads with four braking surfaces
  • Minimize manual effort thanks to smooth running, pre-lubricated ball bearings and precision machined drive train components
  • Simplify maintenance with fewer parts and an easy-to-work-on design
  • 10 foot lift is standard, 15 and 20 foot lifts are also stocked; non standard lifts and hand chain drops available as well
  • Grade 100 heat treated manganese alloy load chain resists abrasion and wear while minimizing chain weight
  • Forged and heat treated alloy steel hooks are designed to open slowly and not fracture under excessive loads
Products specifications
Product type Consumable
Brake Type Weston
Dimensions 23-1/4 in L x 9-13/32 in W x 6 in D
Hook Opening 1-11/16
Lifting Height 20
Load Capacity 6000
Minimum Between Hooks 23-1/4
Pull to Lift Rated Load 92
Series CF Series
