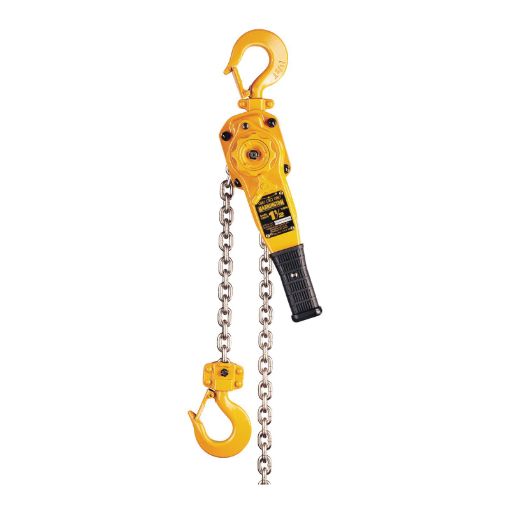

Picture of HARRINGTON L5LB015-15 Heavy Duty Lever Chain Hoist, 1-1/2 ton Load, 15 ft H Lifting, 64 lb Rated, 1.3 in Hook Opening
Picture of HARRINGTON L5LB015-15 Heavy Duty Lever Chain Hoist, 1-1/2 ton Load, 15 ft H Lifting, 64 lb Rated, 1.3 in Hook Opening
Picture of HARRINGTON L5LB015-15 Heavy Duty Lever Chain Hoist, 1-1/2 ton Load, 15 ft H Lifting, 64 lb Rated, 1.3 in Hook Opening
Picture of HARRINGTON L5LB015-15 Heavy Duty Lever Chain Hoist, 1-1/2 ton Load, 15 ft H Lifting, 64 lb Rated, 1.3 in Hook Opening
Picture of HARRINGTON L5LB015-15 Heavy Duty Lever Chain Hoist, 1-1/2 ton Load, 15 ft H Lifting, 64 lb Rated, 1.3 in Hook Opening

HARRINGTON L5LB015-15 Heavy Duty Lever Chain Hoist, 1-1/2 ton Load, 15 ft H Lifting, 64 lb Rated, 1.3 in Hook Opening

Manufacturer: Harrington Hoists
HARRINGTON Lever Chain Hoist, Heavy Duty, Series: LB, 1-1/2 ton Load, 15 ft Lifting Height, 13.2 in Minimum Between Hooks, 1.3 in Hook Opening, 64 lb Pull to Lift, 10.4 in Lever Length, Steel Chain, 1 Reeving, Weston-Type Load Brake, Rubber Grip Handle
SKU: HAR LBL5015-15
Manufacturer part number: L5LB015-15
Availability:
Total Stock Available : 0
Price: Call for pricing
i h h



Have Questions About This Product?



Our LB lever hoist forged an entirely new, industry leading benchmark by being smaller, lighter and stronger than any other lever hoist on the market. This hoist can be used horizontally, vertically, inverted or at any other load angle and its proven strength and durability stand up in an endless array of applications.
  • Body - rugged, high impact, all steel construction weighs less than comparable aluminum models
  • Compact and lightweight design
  • Open design for easy inspection and cleaning without dismantling the unit
  • Hooks - forged, heat treated alloy steel hooks open gradually without fracturing under excessive load
  • Top and bottom hooks have heavy duty hook latch
  • Top and bottom hooks rotate 360 deg
  • Operation - rubber grip handle for non-slip operation
  • Operate in close quarters with short handle and 15-degree recovery stroke
  • Patented spring loaded freewheel mechanism for easy adjustment of the load chain and protection against accidental freewheeling under load
  • Gears - highly durable, split-load double reduction gears
  • Induction heat treated and case-hardened
  • Enclosed to protect from dust and moisture
  • Load chain - nickel plated for corrosion resistance
  • Grade 100 heat treated
  • Brake - Weston style load brake with four braking surfaces, two brake pads and two brake pawls for added safety
  • The totally enclosed brake mechanism protects from dirt and moisture
Products specifications
Product type Consumable
Brake Type Weston-Type Load
Chain Material Steel
Handle Type Rubber Grip
Hook Opening 1.3
Lever Length 10.4
Lifting Height 15
Load Capacity 1-1/2
Minimum Between Hooks 13.2
Pull to Lift Rated Load 64
Reeving 1
Series LB Series
Type Heavy Duty
