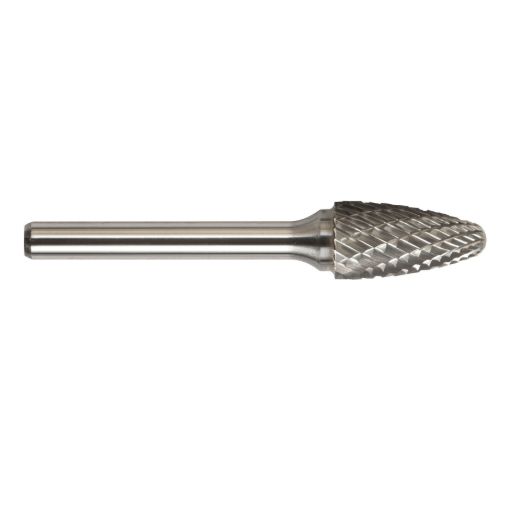

Magnum 7F132BDC 7000F Carbide Burr, Radius End, Tree Head, 1/2 in Dia Head, 1 in L of Cut, Double Cut

Manufacturer: Walter Surface Technologies
Magnum Carbide Burr, Series: 7000F, Radius, 1/2 in Head Dia, 1 in Length of Cut, Tree Head Shape, Double Cut Type, 1/4 in Shank Dia, Solid Carbide Head, 40000 rpm Maximum, Applicable Materials: Aluminum, Brass, Cast Iron, Copper, Magnesium Plastics, Steel and Stainless Steel, SF-5 Industry Specification
SKU: DRI 7F132BDC
Manufacturer part number: 7F132BDC
Availability:
Total Stock Available : 14
Price: Call for pricing
i h h



Have Questions About This Product?



Drillco solid carbide burrs are extremely versatile. Manufactured from premium grade tungsten carbide. Burrs are available in standard lengths (single and double cut), 6" long series, and in miniature sizes (for use in pencil grinders).
  • Drillco's double cut, with it's chisel type cutting edge, is a machine ground tool built to exacting tolerances of concentricity, size and shape
  • This accuracy, when combined with precision grinders, results in smooth running, fast metal removal and fine finishes
  • The right and left hand helical flutes combine to produce a chisel type cutting tooth
  • The double cut design also produces an easy to handle granular type chip, in most metals, as opposed to the conventional sliver type chips
  • Throughout it's life, the double cut gives faster stock removal, less operator fatigue, and maintains a good finish on the widest possible variety of materials
  • Double cut tooth design for aggressive material removal
  • Optimal flute geometry for fast removal and fine finish
  • Brazed shank for perfect concentricity and reduced vibrations
Products specifications
Product type Consumable
Cut Type Double Cut
End Type Radius
Head Diameter 1/2
Head Material Solid Carbide
Head Shape Tree Radius (Shape SF)
Industry Specification SF-5
Length of Cut 1
Maximum Speed 40000
Series 7000F
Shank Diameter 1/4
Applicable Materials Aluminum, Brass, Cast Iron, Copper, Magnesium Plastics, Steel and Stainless Steel
