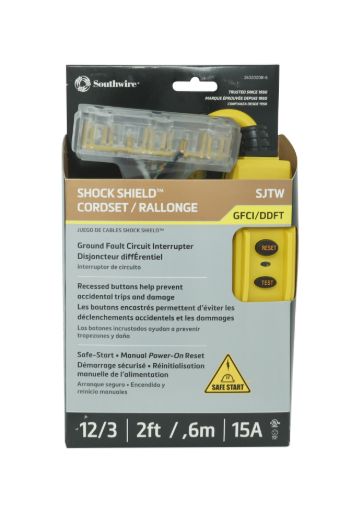

Southwire® 26020008-6 In-Line Protected GFCI Tri-Cord, 120 VAC, 15 A, 1 Pole, 3 Wires, Yellow

Manufacturer: Southwire Company
Southwire® GFCI Tri-Cord, In-Line Protected, 120 VAC, 15 A, 50/60 Hz, 1 Pole, 3 Wires, NEMA 5-15P/5-15R, Rainproof Enclosure, -35 to 66 deg C, Polymer, Yellow, 2 ft L x 4.75 in W x 1.89 in H
SKU: COL 26020008-6
Manufacturer part number: 26020008-6
Availability:
Total Stock Available : 136
Price: Call for pricing
i h h

Have Questions About This Product?

Yellow GFCI rated 12/3 SJTW Tri-Outlet Extension Cord with Lighted Tri-Source End. The Tri-Source End is molded T-head with three receptacles. Provides protection for the extra heavy duty cord and three attached tools used in outdoor/rugged jobsite environments.
  • In line sets feature a heavy duty molded T-head with three receptacles
  • To prevent unmonitored equipment startup, manual reset is required after GFCI trip and power outage
  • 4 to 6 ma trip level
  • 4 Ohm typical grounded neutral
  • Operates within normal limits with 0.5 volts injected on power line 150 kHz to 230 MHz
  • 3000 operations minimum endurance
  • Six times rated overload current
  • 5% maximum trip level variation
  • 1500 VRMS - 1 min insulation voltage
  • Lighted indicator power on indication
  • 12 ga cord is ideal for outdoor
Products specifications
Product typeConsumable
ColorYellow
Amperage Rating15
Dimensions2 ft L x 4.75 in W x 1.89 in H
EnclosureRainproof
Frequency Rating50/60
NEMA RatingNEMA 5-15P/5-15R
Number of Poles1
Number of Wires3
Temperature Rating-35 to 66
TypeIn-Line Protected
Voltage Rating120
MaterialPolymer
